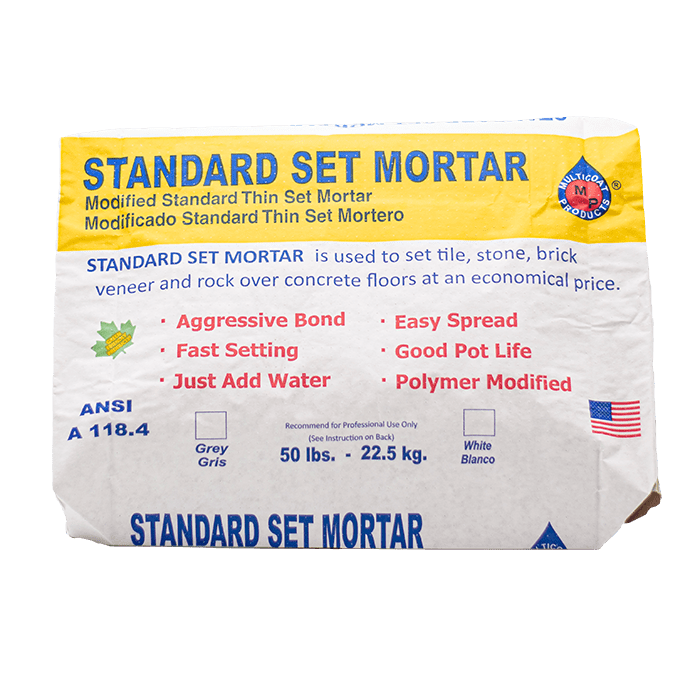

STANDARD SET MORTAR
POLYMER MODIFIED THIN SET
Multicoat’s STANDARD SET MORTAR is a standard polymer modified mortar adhesive used to set tile, stone, brick, brick veneer, and rock over concrete surfaces at an economical price.
BASIC USE: STANDAD SET MORTAR is a standard quality cementitious pre-blended dry material designed to bond masonry units to one another.
SUITABLE SUBSTRATE
Wood
Concrete
AVAILABLE COLORS
| COVERAGE |
| Per Bag: 45-100 ft 2 |
AVAILABLE SIZES
| 50 lb Bag |
Surface Preparation
Substrate must be structurally sound, free from grease, oil, paint, dirt, dust and sealers. Laitance, curing compounds and any other foreign material which may prevent proper bonding. When applying to any cementitious surface, that surface must be fully cured. Water should be able to penetrate the substrate. If water beads, surface contaminates are present. Insure that surface is not subjected to hydrostatic pressure, if so, do not apply. Concrete slabs and mortar beds should have a coarse finish to assist in bonding. When applying to Gypsum and Lightweight Cement the substrate must have a minimum of 2,000 psi compressive strength. Must be dry and properly cured. Roughen the surfaces by sanding or scarifying, rinse and allow to dry. Do not sand floors that contain asbestos.
Application
Step 1: STANDARD SET MORTAR is to be field mixed with clean potable water and mechanically mixed to desired consistency based upon scope of application. Add approximately 6-1/2 quarts of water into mixing container. Slowly pour the contents of the bag into the mixing water. Mix until a firm, workable consistency is achieved. If more water is needed, add small amounts and continue to mix until consistency is achieved. Let the mixture slake or stand 5 to 10 minutes, then stir again and use. Stir occasionally but do not add more water. Desired consistency should be trowel ridges should stand without slumping. Do not exceed a total volume of 1.5 gallons or water for each 65-lb. bag. Be sure mixed material is consistent from batch to batch. Step 2: Apply STANDARD SET MORTAR to substrate with flat trowel. Use a properly sized notch trowel to insure proper coverage and spread of material under tiles. Work placed STANDARD SET MORTAR with notched trowel to create rows of adhesive to proper thickness for item being placed. Press tile firmly in place, moving back and forth to insure a proper set. Adjust tile quickly and then gently tap into place with rubber mallet or beating block until flush with other units. Periodically pull up a tile or stone and check the back to insure proper adhesive coverage. If mortar has already taken its set under the lifted tile, remove mortar and replace with fresh STANDARD SET MORTAR can be a total of 3/8″ thick once item has been set and tamped into place.
Step 3: Curing time will vary due to weather conditions, thickness, substrate absorption, etc. Material should be protected from weather elements and foot traffic for a minimum of 24 hours. Provision for movement (expansion joints and control joints) and other changes of plane in all installations are required. Do not bridge expansion or control joints. Those joints should be brought up through the work and filled with a suitable caulking.
SIZES:
- 50 lb bag
STORAGE:
- 40-90°F.
- Low humidity environment
SHELF LIFE:
- Approx. 24 months in unopened containers.
Multicoat Corporation offers a special 5-year Limited Materials Warranty to Trained and Certified Applicators. This Limited Warranty (effective upon date of purchase) protects the Applicator against delamination problems with all Multicoat systems, as well as water intrusion of Multicoat’s Waterproofing System, provided:
1. Multicoat system has been properly applied by a certified applicator.
2. Problem is determined to be due to defect of Multicoat Corporation’s products.
3. Applicator has prepared and filed the required Warranty Information Form(s) with Multicoat Products, Inc. covering the specific customer job(s).
NOTE:
Warranty is not applicable if there is movement or cracking of the underlying base and/or the weight bearing cement covering of the waterproofing membrane.
Failure to adhere to good construction and workmanship practices based on industry standard construction, means, methods, sequences and techniques could result in delamination, de-bonding and water intrusion for which Multicoat will not be responsible.
The end user must look to the Certified Applicator for satisfaction if any problem develops with the Multicoat system covered by the warranty. Multicoat suggests that the customer:
1. Use only a licensed contractor in good standing (fully bonded).
2. Make certain that the applicator has been certified by Multicoat, prior to work
commencing or certification while on the job. A simple phone call to Multicoat is sufficient to determine if an applicator is certified and if such certification is in
good standing.
In the event that it is determined that the Applicator failed to install the system(s) in accordance with Multicoat’s “instructions for use” or “specifications”, the warranty is void. See specific warranty information below.
WARRANTY
Materials are guaranteed with respect to uniformity and quality within
manufacturer’s specifications.
WARRANTY DISCLAIMER
There are no warranties which extend beyond the description of the fact hereof. Seller expressly disclaims all other warranties regarding the use of its products, whether expressed or implied, including the implied warranties of merchantability and for fitness of a particular purpose. Since use of the product is beyond the
Seller’s control, the Buyer assumes all risk of use.
EXCLUSIVE REMEDY
Seller’s sole obligation, and buyer’s exclusive remedy shall be to replace material if found to be defective.
DAMAGE LIMITATION
Seller shall not be liable for any damages, injury, loss, direct or consequential,
resulting from its products. The parties intend that the limitation of damages,
including consequential damages, applies even if the exclusive remedy provided for herein fails of its essential purpose.
