LASTODRAIN
DRAINAGE SYSTEM

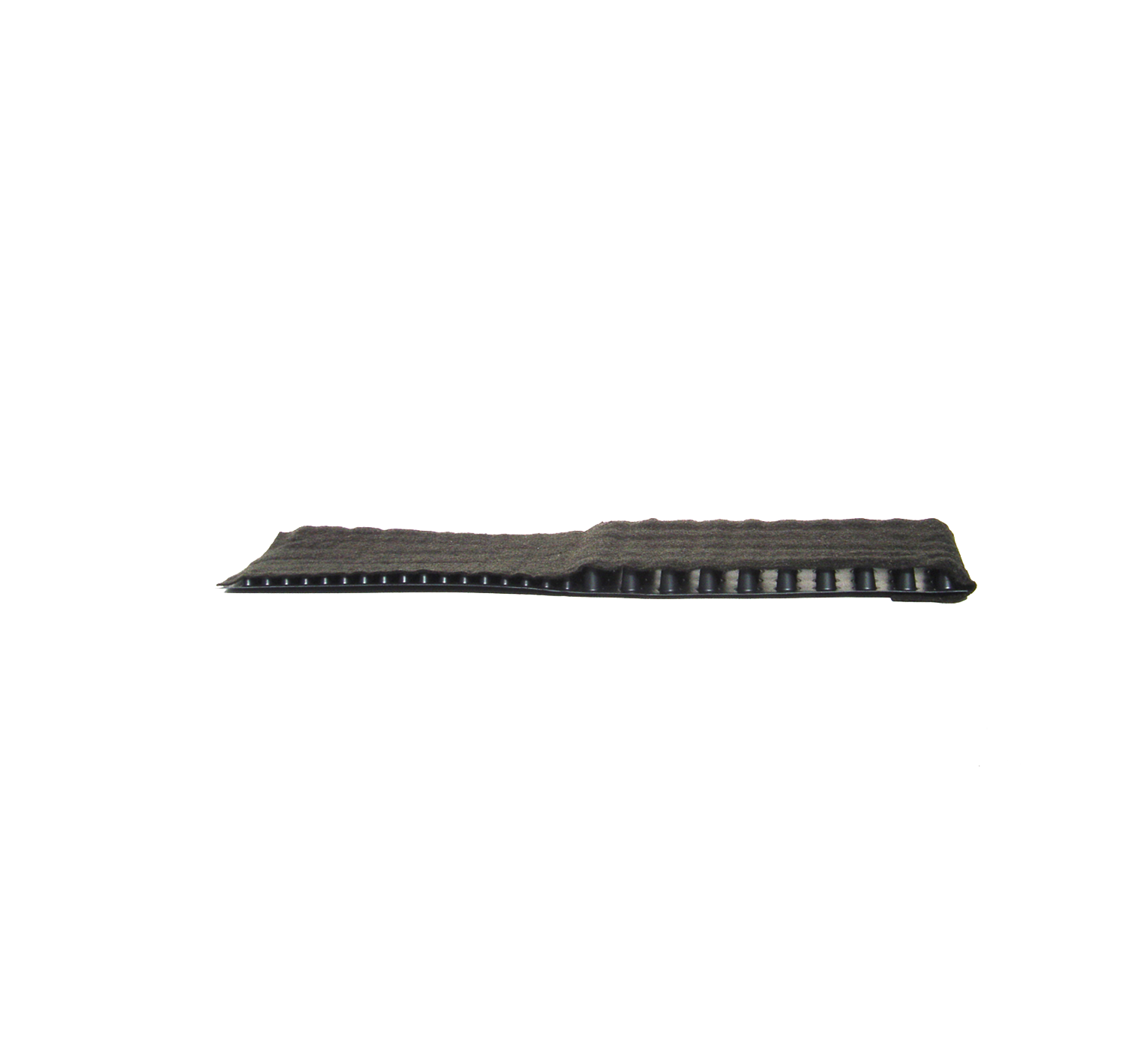

LASTODRAIN is a system of drainage mats and drainage systems for moving water away from below grade walls. Replace drain board and pipe and gravel systems. LASTODRAIN should be paired with our BG2000 or Slatex Below Grade Waterproofing system to achieve the ultimate waterproofing package. It is designed to direct and carry water down and away from below grade walls, foundations and footers. This system is comprised of a rolled material with geo-textile coverings for filtering – working in conjunction with a specially designed drainage core to carry away water. When used with either of our membranes you get a superior worry free waterproofing system.
SUITABLE SUBSTRATE
Wood
Concrete
Metal
Foam
AVAILABLE COLORS
| COVERAGE |
| pending on size2 |
AVAILABLE SIZES
| Last-200 | Last 400 |
| Total Drain | Last 600 |
INSTRUCTION SHEET
Fabric Properties
1) Material: Polypropylene
2) Grab tensile: 110 lbs per ASTM D4632
3) Puncture: 65 lbs per ASTM D4833
4) Mullen burst: 215 psi per ASTM D3786
5) Elongation: 60% per ASTM D4632 f)
6) AOS Std.: 100 sieve per ASTM D4751 g)
7)Flow rate: 150 gpm/sq ft per ASTM D4491
Core Properties
1) Material: Polystyrene with polymeric sheet on flat side of core
2) Thickness: 1/4 inch per ASTM D1777 c)
3) Compressive Strength: 10,800 lbs/sq. ft per ASTM D1621
PENDING UPON SKU. CONTACT REPRESENTATIVE FOR MORE INFORMATION
Multicoat Corporation offers a special 5-year Limited Materials Warranty to Trained and Certified Applicators. This Limited Warranty (effective upon date of purchase) protects the Applicator against delamination problems with all Multicoat systems, as well as water intrusion of Multicoat’s Waterproofing System, provided:
- 1. Multicoat system has been properly applied by a certified applicator.
- 2. Problem is determined to be due to defect of Multicoat Corporation’s products.
- 3. Applicator has prepared and filed the required Warranty Information Form(s) with Multicoat Products, Inc. covering the specific customer job(s).
NOTE:
Warranty is not applicable if there is movement or cracking of the underlying base and/or the weight bearing cement covering of the waterproofing membrane. Failure to adhere to good construction and workmanship practices based on industry standard construction, means, methods, sequences and techniques could result in delamination, debonding and water instrusion for which Multicoat will not be responsible.
The end user must look to the Certified Applicator for satisfaction if any problem develops with the Multicoat system covered by the warranty. Multicoat suggests that the customer:
- 1. Use only a licensed contractor in good standing (fully bonded).
- 2. Make certain that the applicator has been certified by Multicoat, prior to work commencing or certification while on the job. A simple phone call to Multicoat is sufficient to determine if an applicator is certified and if such certification is in good standing.
In the event that it is determined that the Applicator failed to install the system(s) in accordance with Multicoat’s “instructions for use” or “specifications”, the warranty is void. See specific warranty information below.
WARRANTY
Materials are guaranteed with respect to uniformity and quality within manufacturer’s specifications.
WARRANTY DISCLAIMER
There are no warranties which extend beyond the description of the fact hereof. Seller expressly disclaims all other warranties regarding the use of its products, whether expressed or implied, including the implied warranties of merchantability and for fitness of a particular purpose. Since use of the product is beyond the Seller’s control, the Buyer assumes all risk of use.
EXCLUSIVE REMEDY
Seller’s sole obligation, and buyer’s exclusive remedy shall be to replace material if found to be defective.
DAMAGE LIMITATION
Seller shall not be liable for any damages, injury, loss, direct or consequential, resulting from its products. The parties intend that the limitation of damages, including consequential damages, applies even if the exclusive remedy provided for herein fails of its essential purpose.
