PONDS & WATER FEATURES
Above Ground Structures
THE (GREEN) INDUSTRIAL STRENGTH POND SOLUTION
Multicoat PONDS & WATER FEATURES (AG) System offers a completely waterproof solution to projects that are subject to high movement, water loss, and/or are located above the soil level. This membrane driven solution provides a long-lasting barrier from all elements and risks from harming your project. This system should be chosen cautiously over our universal SHIELD KOTE system in areas that are on grade or below grade to prevent issues stemming from negative side hydrostatic pressure.
FEATURES
- Easy to apply
- Easy to apply
- Easy to apply
- Easy to apply
RESISTANT TO
- FIRE / SALT
- FREEZE / THAW
- UV
- IMPACT / ABBRASION
SUITABLE SUBSTRATE
Concrete
Metal
Foam
| COMPONENTS | COVERAGE |
| *VAPOR SHIELD | Per Gallon: 75-150 ft 2 |
| SCRATCH KOTE | Per Bag: 125 – 150 ft 2 |
| *MULASTICOAT | Per Gallon: 70 – 90 ft 2 |
| *POND KOTE | Per Bag: 120 ft 2 |

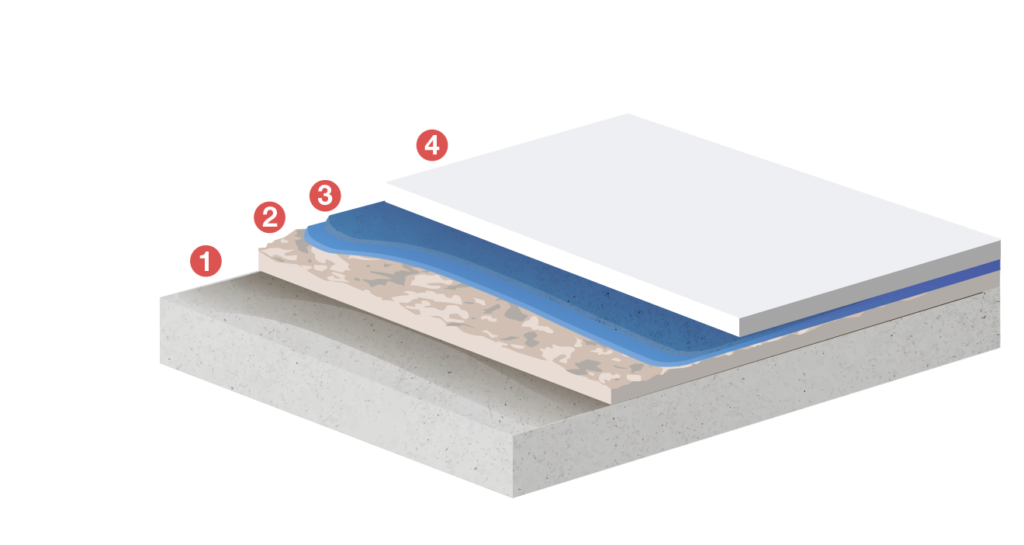

- STEP
- PRODUCT INFO
- INSTRUCTIONS
- 1
VAPOR SHIELD
vapor barrier150 sqft/gallon
- 2
SCRATCH KOTE 2000
bond coat175 sqft/bag
- 3
MULASTICOAT
waterproof membrane40 sqft/gallon
- 4

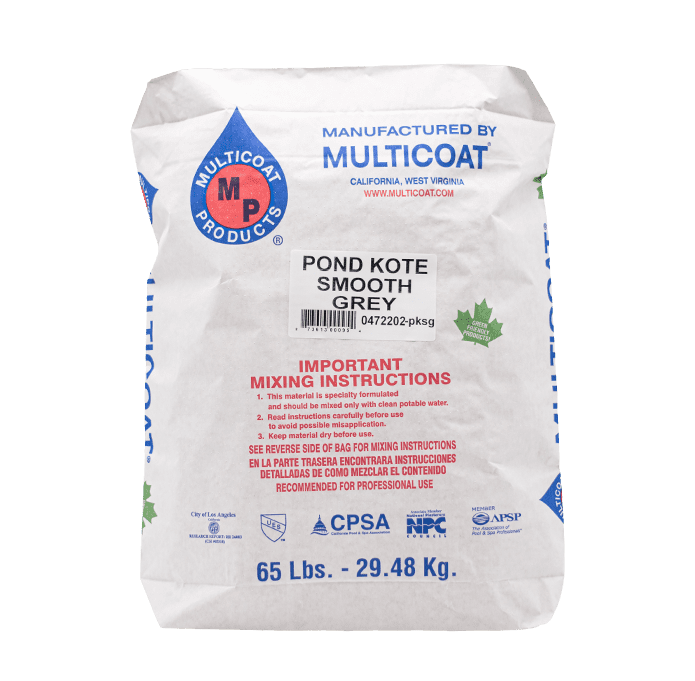

POND KOTE
waterproof membrane40 sqft/gallon
Apply Vapor Shield with a pump sprayer in conjunction with water, back to back. Repeat for a total of 2 coats. Allow 24 hours to dry.
Learn more about VAPOR SHIELDApply Scratch Kote 2000 with a hopper gun, pressure sprayer or a ¾”-1¼” nap roller. Applied material should peak, not slump.
Learn more about SCRATCH KOTE 2000Stir MULASTICOAT with hand paddle. Roll, brush or spray Mulasticoat over the area to be waterproofed in two (2) coats. Embed Polyester Stitch Bond Fabric immediately during the application of the first coat over all flashing, plane changes, and joints and apply additional material on top of it. Allow to dry thoroughly between coats.
Learn more about MULASTICOATUsing a trowel, hopper gun, or magic trowel, apply Pond Coat to the surface at the desired thickness as long as it is under 1/4". In some cases, shrinkage cracks may appear, simply apply extra material to those areas upon completion.
Learn more about POND KOTECUSTOMIZE THIS SYSTEM
TO FIT YOUR NEEDS
Click “Show More” to view all of the testing points and their properties.
MULASTICOAT
Tensile Strength
ASTM D2370 PSI 203
Elongation
ASTM 2370 1148%
Tensile Bond Adhesion, PSI
ASTM C297 162 Cohesive
Static Hydrostatic Pressure
ASTM C 1306 Pass>45PSI
Hydrostatic Head
12” Water/Film@40mil Pass 96hrs/No Effect
6 Low Temperature Flexibility
Mandrel Bend ASTM D522 ½“ Room Temp Pass
1” @ -5°F Pass
½“ @ -5°F Pass
POND KOTE
Density, g/cc
175
Compressive Strength (28 day)
3125 psi
Flexural Strength (28 day)
1375 psi
Water %
2250%
Toxicity (96 hr LC50)
Passed*
*Toxicity testing was done on flat head minnows and rainbow trout, with no adverse affects to either species of fish
SCRATCH KOTE 20000
Weatherometer
ASTM-G 23 2000 hrs – Passed
Compressive Strength
ASTM-C 109 45 days air cured – 2595psi
Tensile Strength
ASTM-C 190 457 psi
Bond Strength(Flatwise Tension)
ASTM-C 297 225 psi
Abrasion
ASTM-1242A 1000cyc-1000gms Passed
50 Cycle Freeze Thaw
ASTM-C 67 Passed
Flexural Strength
ASTM-D 790 Modulus of Rupture – 770psi
Impact Resistance
MIL-D3134F Passed
For Safety Data Sheets, visit our “Resources” page.
Click “Show More” to view all of the Frequently Asked Questions (FAQ’s) and their answers.
Q: Is this fish friendly?
A: Yes. Allow material to dry 7 to 10 days prior to filling with water. After filling, run circulation pumps/filters followed by a light brushing to remove any surface containments prior to adding fish. Longer dry time will be required for interior applications.
Q: Can I add colorant to the POND KOTE?
A: Yes as long as you mix the colorant with the water prior to adding the dry mix to it. You should not mix the colorant in after it has been mixed with water.
Q: Do I have to strip off any old material from the substrate?
A: Yes, we recommend approximately 92-100% removal of all old coatings prior to the application of this system.
Q: Can I just use the MULASTICOAT as a patch for my existing pond? I only have a few spots that are leaking.
A: No. MULASTICOAT creates a uniform membrane and is not designed to be a “universal” material that can bond with any coating.
