BG2000 SYSTEM
Below Grade Waterproofing
THE MOST RELIABLE AND EASY TO USE BELOW GRADE SYSTEM
The BG 2000 System is a unique waterproofing system for below grade applications. It is strong enough to withstand sharp backfill without a protection board/coating, but also flexible enough to stretch 3 times its original shape. With all that performance, did we mention that it’s also a soil/green friendly product?
FEATURES
- Highly Flexible
- Durable
- Cost-Effective
- Easy to Apply
RESISTANT TO
- FIRE / SALT
- FREEZE / THAW
- UV
- IMPACT / ABBRASION
SUITABLE SUBSTRATE
Wood
Concrete
Metal
Foam
| COMPONENTS | COVERAGE |
| BG2000 | Per Gallon: 35-45 ft 2 |
VOC Content: < 5 g/L

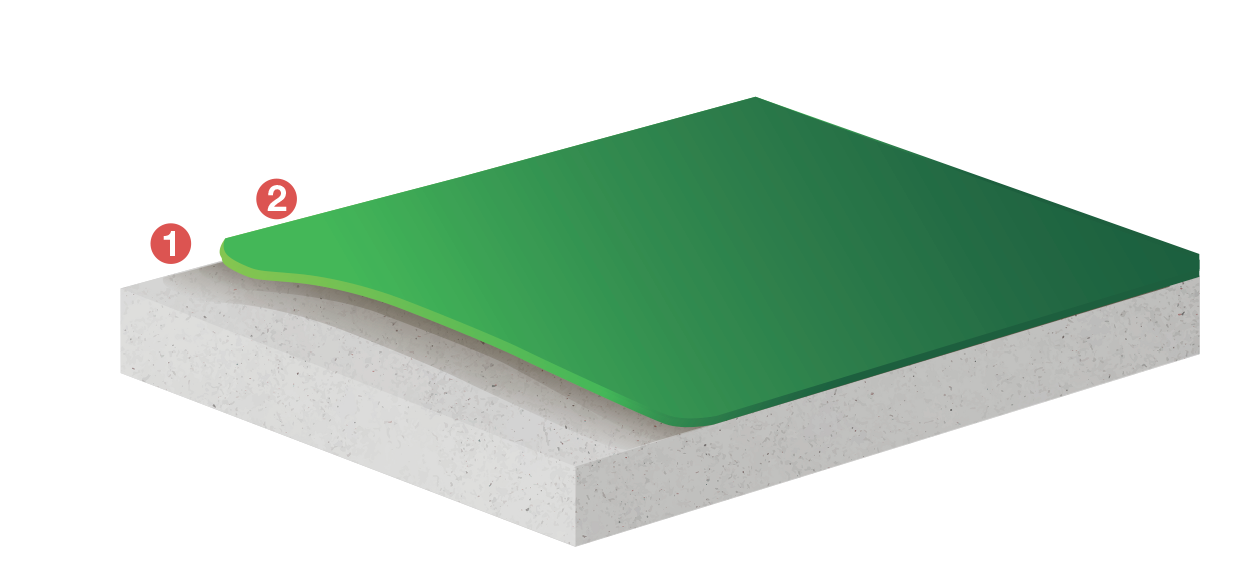

- STEP
- PRODUCT INFO
- INSTRUCTIONS
- 1

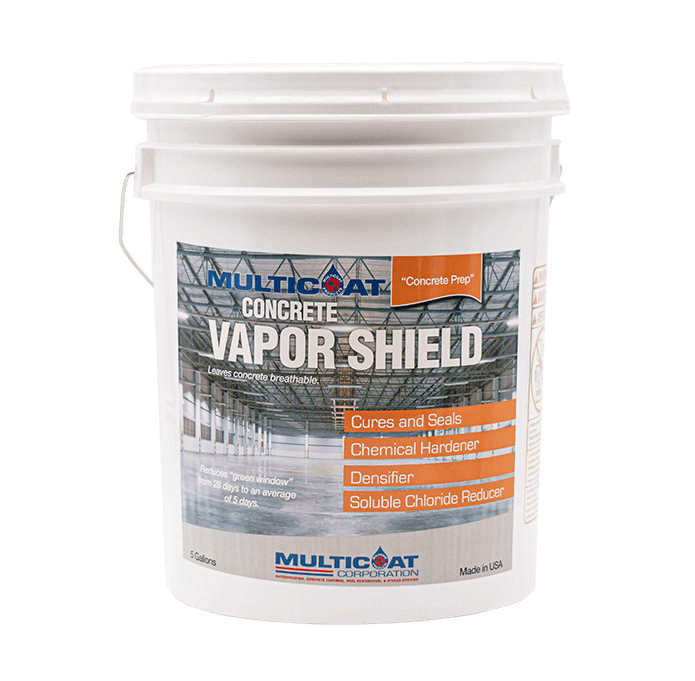

VAPOR SHIELD
vapor barrier150 sqft/gallon
- 2

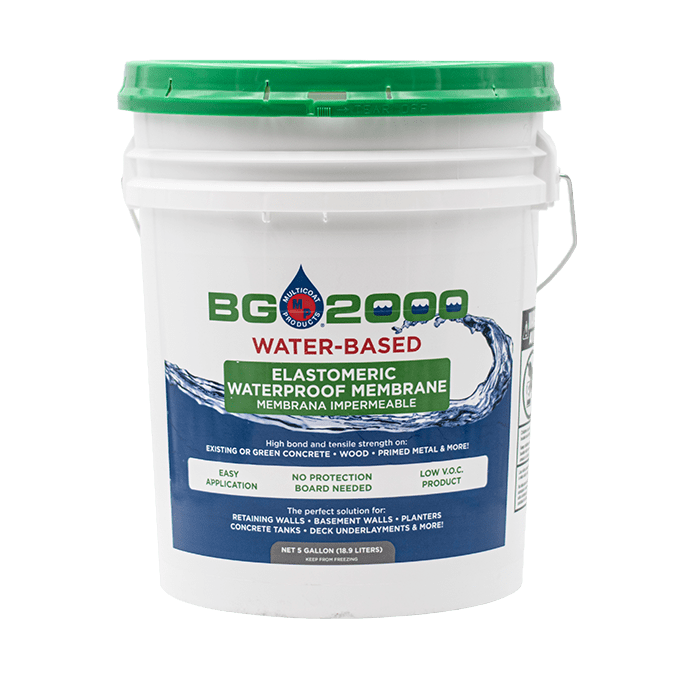

BG2000
waterproof membrane40 sqft/gallon
*OPTIONAL - Apply Vapor Shield to the substrate to reduce the green window of concrete, prevent efflorescence, and/or resist hydrostatic pressure coming through wall. Apply with a pump sprayer in conjunction with water, back to back. Repeat for a total of 2 coats. Allow 24 hours to dry prior to application of BG2000.
Learn more about VAPOR SHIELDSpray one (1) heavy coat or roll two (2) coats of MULASTICOAT® BG 2000 over area to be waterproofed at a coverage rate of 35-45 sq. ft. per gallon. ROLLING: use a 3/4" nap roller and saturate the roller completely. Heavy coats are recommended. Use a mil thickness gauge to ensure achievement of at least two 20 mil coats. SPRAYING: use an airless paint sprayer, any grade will do. For peak performance, use a .025" - .027" spray tip. An easy way to achieve the right coverage when spraying is to mark off a 200 sqft area and use an entire 5 gallon bucket to cover that marked area.
Learn more about BG2000CUSTOMIZE THIS SYSTEM
TO FIT YOUR NEEDS
Click “Show more” to view all testing results
Tensile Bond Adhesion to Concrete Tensile Strength
Method: ASTM C-297 Result: 335 psi (coh/adh)
Tensile Strength
Method: ASTM D-412 Result: 399 psi
Elongation
Method: ASTM D-412 Result: 319.3%
Hydrostatic Head
Method: 12” Water/Film @ 40mil Result: Pass 96 Hrs/no effect
Hydrostatic Pressure
Method: ASTM C-1306 Result: Pass >45 psi*
*The test procedure only calls for taking the pressure to 45 psi but after passing so easily, test was taken up to 80 psi for 3 hours and surface still did not leak.
Click “Show more” to view all the answers
Q: Can BG2000 be applied to green concrete?

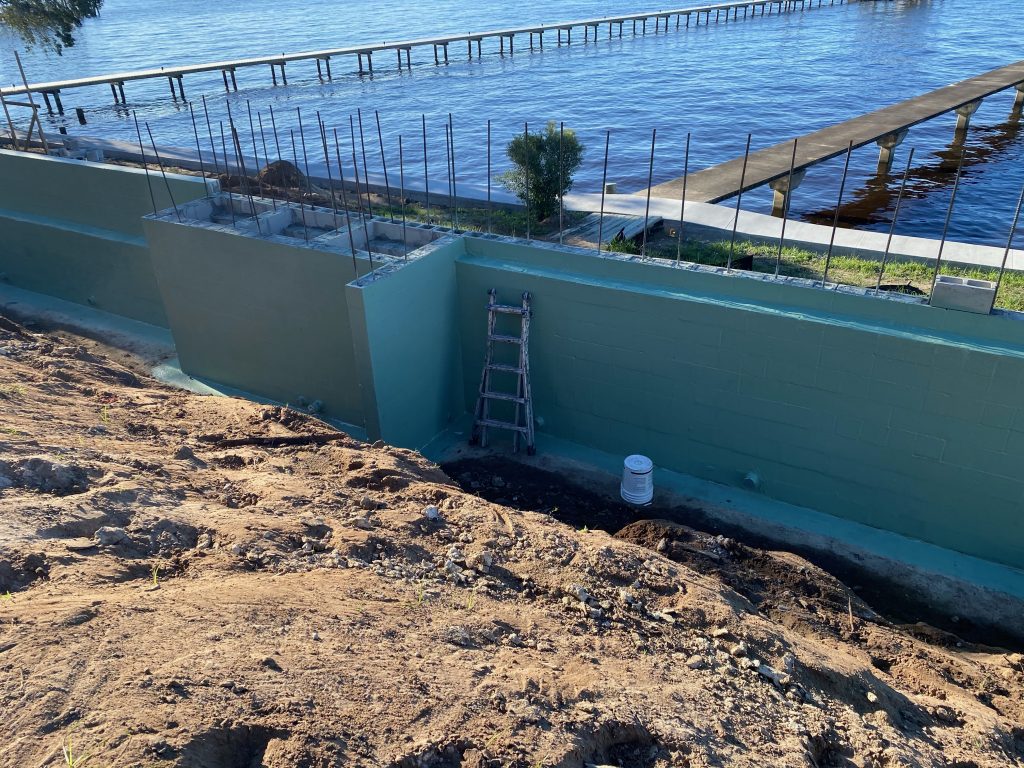

A: For applications with at least one exposed side, YES. As long as it is firm to touch and cleaned of mold releases and other impurities. Things like: poured in place retaining walls, freshly built block walls, etc. are perfect applications for BG2000.
Q: Is BG2000 oil-based?
A: No, there is no asphalt emulsion in BG2000. Unlike many competitors that claim to be “water-based” but also contain petroleum byproducts, BG2000 is made from 100% Water born acrylics and contains ZERO ASPHALT EMULSION.
Q: Is BG2000 expensive?
A: No, when used in replace of lower end asphalt products consumers see a cost decrease due to its higher coverage rates, lower application time, and clean up time/ease.
Q: How do you bridge expansion joints and wall/floor 90º joints?

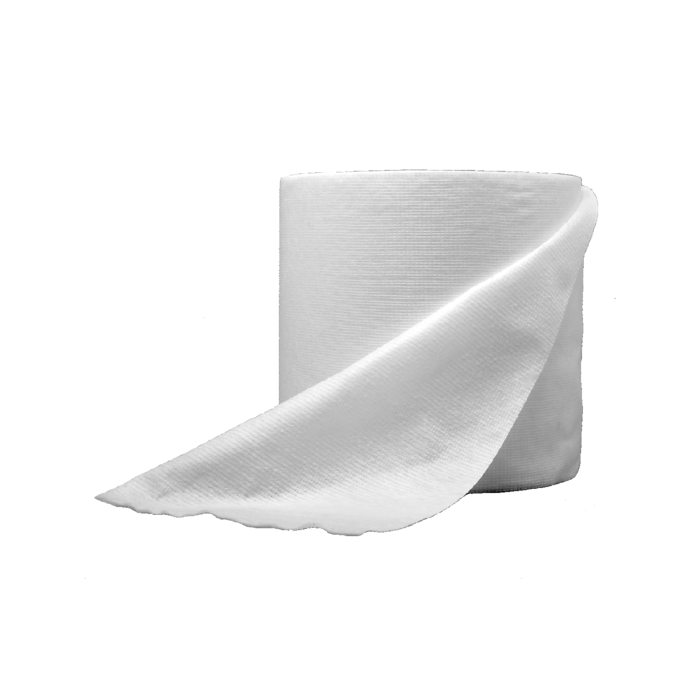

A: We recommend embedding a material called Polyester Stitch Bond Fabric into the first coat of BG2000 to act as a reinforcement material for high movement areas. It is an inexpensive way to ensure security and rigidity in areas that may be subject to extreme movement over time.
