INTERIOR BASEMENT DAMP-PROOFING
Interior Below Grade
THE BETTER WAY WHEN DIGGING ISN’T AN OPTION
Everyone knows the best way to waterproof a basement is to excavate around the wall, apply BG2000 and bury it. When that solution is just not attainable and a work around is needed, 2 coats of Vapor Shield, and a specially formulated white version of BG2000 can be applied to the interior walls. This will give a resilient paintable surface that prevents efflorescence and withstands water and vapor upwards of 20psi.
FEATURES
- Vapor Barrier
- Flexible
- Paintable
- Low VOC
RESISTANT TO
- FIRE / SALT
- FREEZE / THAW
- UV
- IMPACT / ABBRASION
VOC Content:< 5 g/L
SUITABLE SUBSTRATE
Concrete
| COMPONENTS | COVERAGE |
| *VAPOR SHIELD | Per Bag: 75 – 150 ft 2 |
| *BG2000 | Per Bag: 35 – 45 ft 2 |

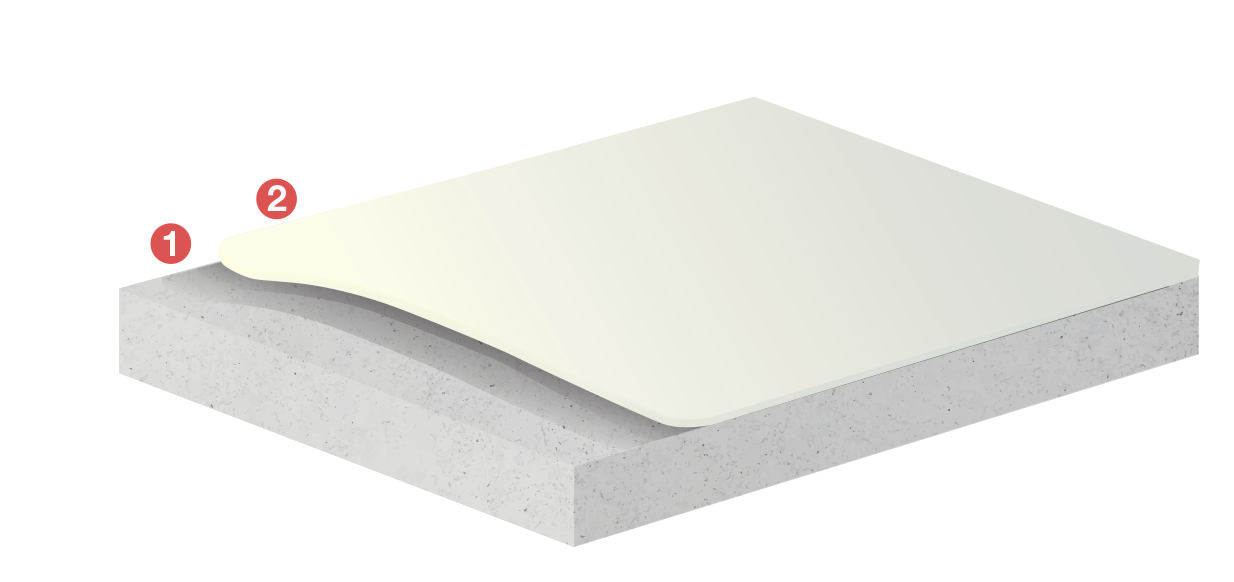

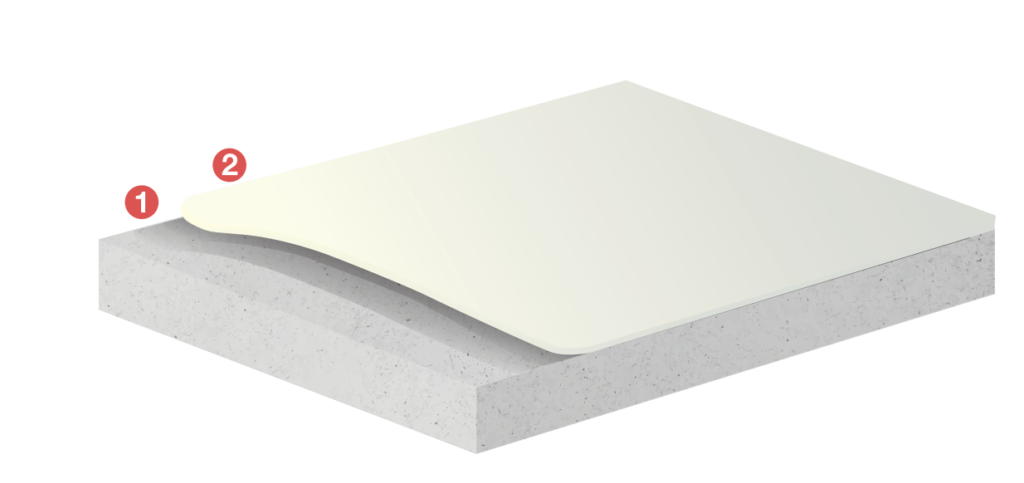

- STEP
- PRODUCT INFO
- INSTRUCTIONS
- 1
VAPOR SHIELD
vapor barrier150 sqft/gallon
- 2
BG2000
waterproof membrane40 sqft/gallon
Spray apply Vapor shield (2 coats) with a pump sprayer. Use water between coats along with another mist of water after the final 2nd coat.
Learn more about VAPOR SHIELDCUSTOMIZE THIS SYSTEM
TO FIT YOUR NEEDS
Click “Show more” to view all testing results
Tensile Bond Adhesion to Concrete Tensile Strength
Method: ASTM C-297 Result: 335 psi (coh/adh)
Tensile Strength
Method: ASTM D-412 Result: 399 psi
Elongation
Method: ASTM D-412 Result: 319.3%
Hydrostatic Head
Method: 12” Water/Film @ 40mil Result: Pass 96 Hrs/no effect
Hydrostatic Pressure
Method: ASTM C-1306 Result: Pass >45 psi*
*The test procedure only calls for taking the pressure to 45 psi but after passing so easily, test was taken up to 80 psi for 3 hours and surface still did not leak.
For Safety Data Sheets, visit our “Resources” page
Click “Show More” to view all of the Frequently Asked Questions (FAQ’s) and their answers.
Q: Is The Interior Damp Proofing System the same as standard below grade waterproofing?
A: The Interior Damp Proofing System is a unique system that attempts to tackle the same issues below grade waterproofing systems solve with less of a cost burden.
Q: Can I apply this system to wood framing?
A: No. Wood Framing will mold when water saturates it from the back side. You must remove all framing prior to applying the system to the bare basement wall.
Q: Can This be painted?
A: Yes, BG2000 (White) is an acrylic product. Any acrylic paint will adhere to it.
Q: How do you bridge expansion joints and wall/floor 90º joints?

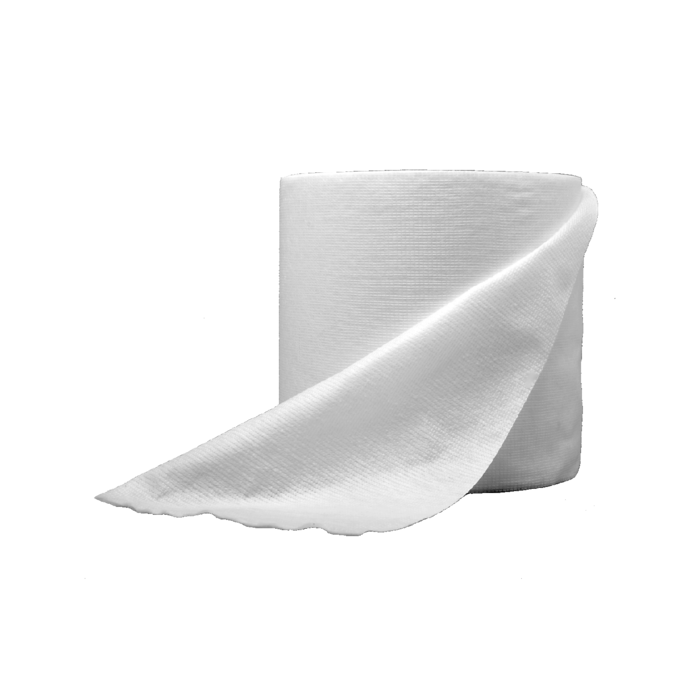

A: We recommend embedding a material called Polyester Stitch Bond Fabric into the first coat of BG2000 to act as a reinforcement material for high movement areas. It is an inexpensive way to ensure security and rigidity in areas that may be subject to extreme movement over time.
