MULTI-DECK SYSTEM – Wood Substrate
Above Grade Waterproofing
A DURABLE, LONG-LASTING DECKING SOLUTION WITH PREMIUM AESTHETICS
The MULTI-DECK SYSTEM FOR WOOD SUBSTRATES is a multi-layer, waterproofing, and decorative protective coating designed for above grade wood decks. The system is designed to withstand heavy foot traffic on decks, ramps, walkways, etc.
FEATURES
- Easy To Apply
- Waterproof
- Resists Cracks
- Long-Lasting
RESISTANT TO
- FIRE RATED / SALT
- FREEZE / THAW
- UV
- IMPACT / ABBRASION
SUITABLE SUBSTRATE
Wood
| COMPONENTS | COVERAGE |
| METAL LATH | Per Piece: 21 ft 2 |
| MULTI-BASE | Per Bag: 40 – 60 ft 2 |
| MULASTICOAT | Per Gallon: 45 – 50 ft 2 |
| KRETE KOTE* | Per Bag: 125 – 150 ft 2 |
| COLORSEAL | Per Gallon: 150 – 200 ft 2 |
*TOP COAT 2000 may be substituted for KRETE KOTE

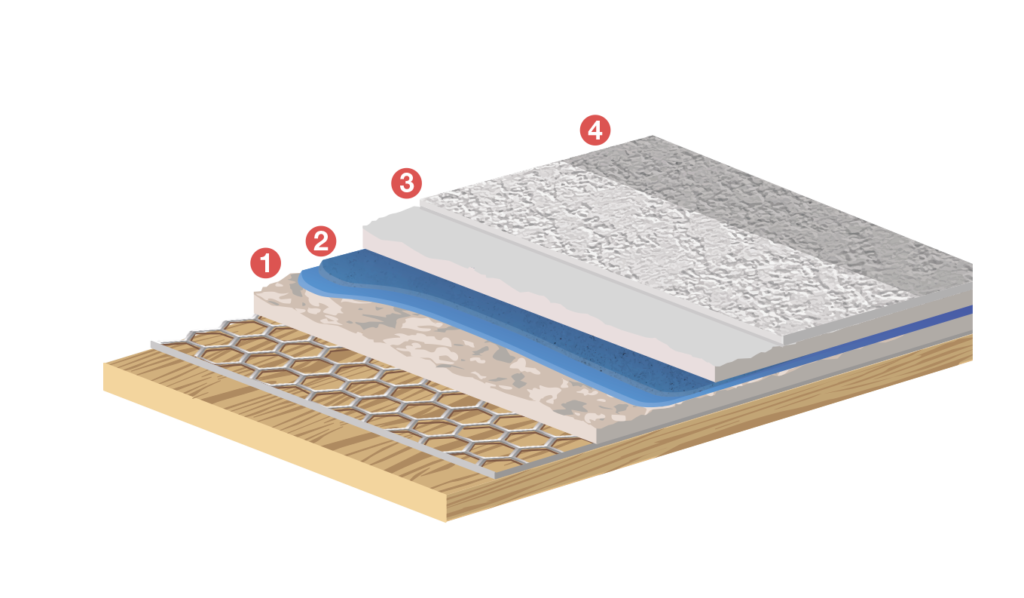

- STEP
- PRODUCT INFO
- INSTRUCTIONS
- 1

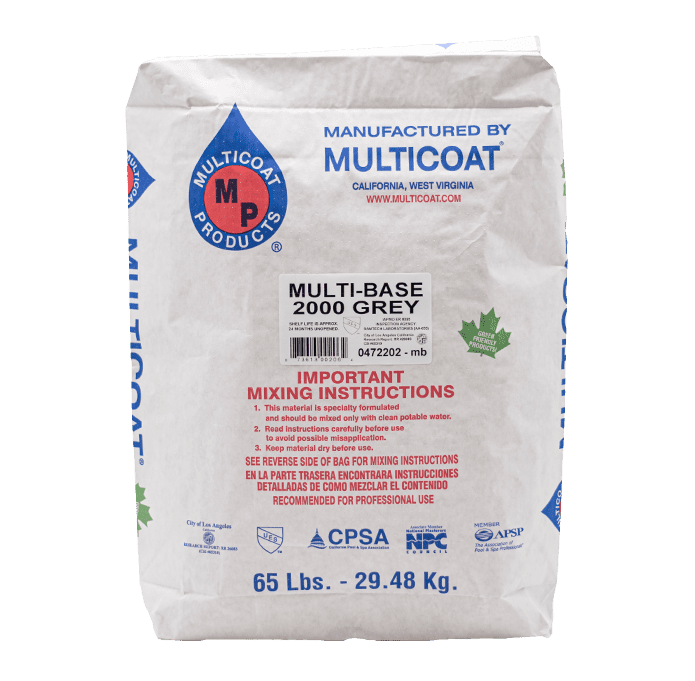

MULTI-BASE
base coat50 sqft/bag
- 2

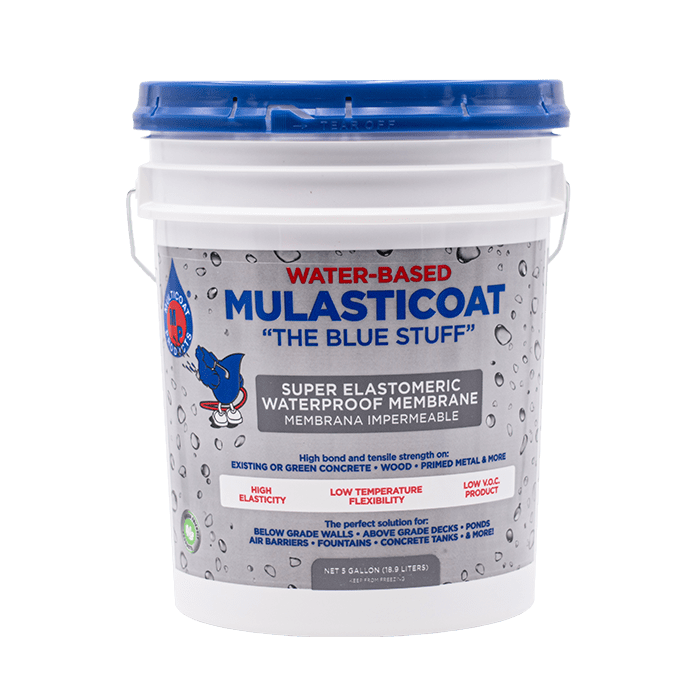

MULASTICOAT
waterproof membrane40 sqft/gallon
- 3

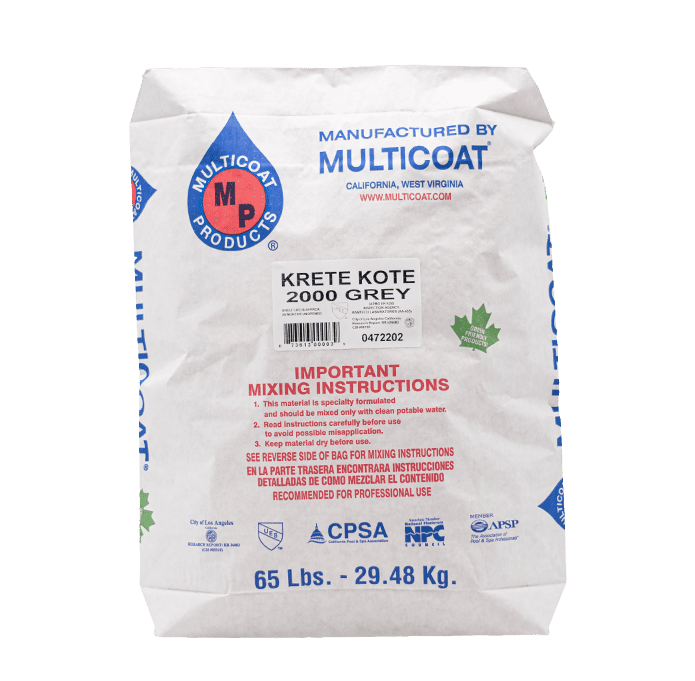

KRETE KOTE 2000
overlay cement140 sqft/bag
- 4
ACRATHANE COLORSEAL
paint/sealer250 sqft/gallon
Over 2.5 galvanized metal lathe in a staggered pattern over the entire plywood/OSB surface overlapping the metal flashing to the edge of the deck surface. Mix MULTI-BASE per instructions on the bag and pour over the metal lathe. Trowel onto the deck covering the metal lathe and allow to dry completely.
Learn more about MULTI-BASEMULASTICOAT® is then applied over entire surface in two (2) coats with roller, using firm pressure. Embed POLYESTER STITCH BOND FABRIC in the first coat while wet over all flashings. First coat is considered “dry” when dry to the touch which is usually 1-2 hours depending on ambient temperature. The second coat is applied crisscross to the first coat. Broadcast silica sand over wet material to promote mechanical bonding to the following protective decorative finish. After product has dried for a minimum of 24 hours, or longer for cold weather, brush off lose sand before applying a decorative wearing surface.
Learn more about MULASTICOATApply Krete Kote or Top Coat in 2 steps: a base coat, and a texture coat. Apply a smooth thin layer with a trowel, sprayer or magic trowel and allow to dry. Then apply a texture on top top desired aesthetic look.
Learn more about KRETE KOTE 2000Apply the diluted COLORSEAL with nap roller for the 1st coat with very firm pressure. (1/2” nap roller for smooth and 3/4” nap roller for rough surfaces). Allow a minimum of one (1) hour to dry. For the 2nd coat, apply at full strength. Airless sprayers may be used for the 2nd and final coat. Allow final coat a minimum of 24 hours before placing area into use. Will fully cure in 14 days, during which care should be exercised against excessive abuse.
Learn more about ACRATHANE COLORSEALCUSTOMIZE THIS SYSTEM
TO FIT YOUR NEEDS
Click the desired detailed drawings below to download.
OUTSIDE CORNER FLASHING WRAPAROUND >
POST FLASHING >
SCUPPER FLASHING >
SIDE MOUNT RAILING >
STAIR FLASHING >
THRESHOLD FLASHING >
DECK EDGE & WALL TO DECK >
DRAIN FLASHING >
INSIDE CORNER FLASHING >
MULTIPLE FLASHING >
OUTSIDE CORNER FLASHING TERMINATION >
Click the testing/evaluation report below to download.
CITY OF LA RR REPORT >
IAPMO EVALUATION REPORT >
Click the desired PDF below to download.
COLORSEAL COLOR CHART >
MULTI-STAIN COLOR CHART >
For Safety Data Sheets, visit our “Resources” page.
Click “Show More” to view all of the Frequently Asked Questions (FAQ’s) and their answers.
Q: Can Wood Multi-Deck be applied over my existing waterproofing?
A: No, it is best practice to remove an old, failing system before applying a new waterproofing system such as The Multi-Deck System – Wood Substrates.
Q: Can I skip the lath and Multi-Base steps and apply the waterproofing directly to the wood surface?
A: No, the lathe and the Multi-Base restrict the movement of the deck and provide more structure to the surface. It is necessary to fight thermal expansion and contraction and gives an added fire resistance to the system.
Q: Is Multi-Deck expensive?
A: Comparing different systems on the market, Multi-Deck is a very cost effective option for waterproofing your deck. Call us today to locate a Certified Applicator near you.
Q: How do you bridge expansion joints and wall/floor 90º joints?
A: We recommend embedding a material called Polyester Stitch Bond Fabric into the first coat of BG2000 to act as a reinforcement material for high movement areas. It is an inexpensive way to ensure security and rigidity in areas that may be subject to extreme movement over time.
