NATURAL TEXTURES, SUPERNATURAL LONGEVITY

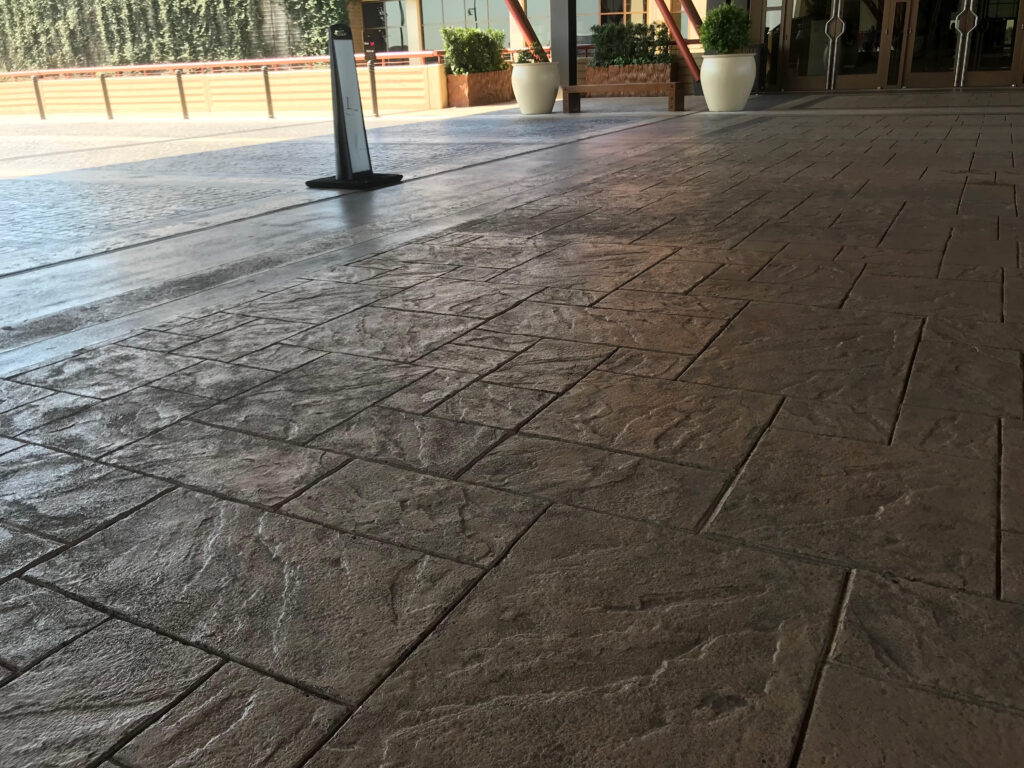

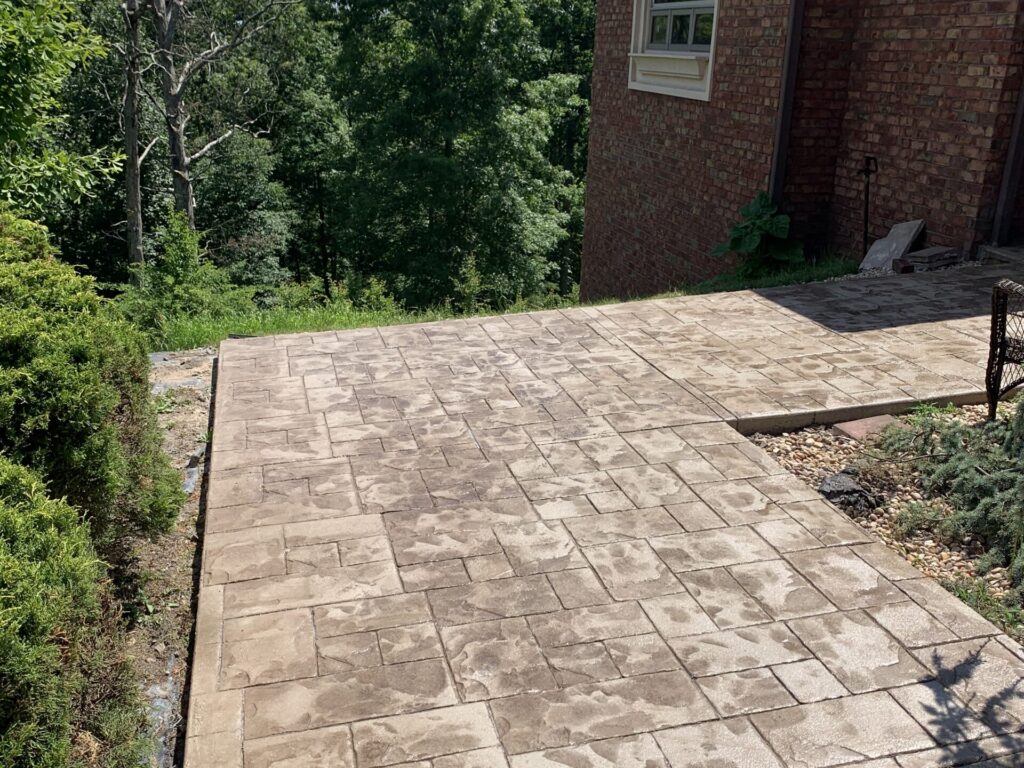

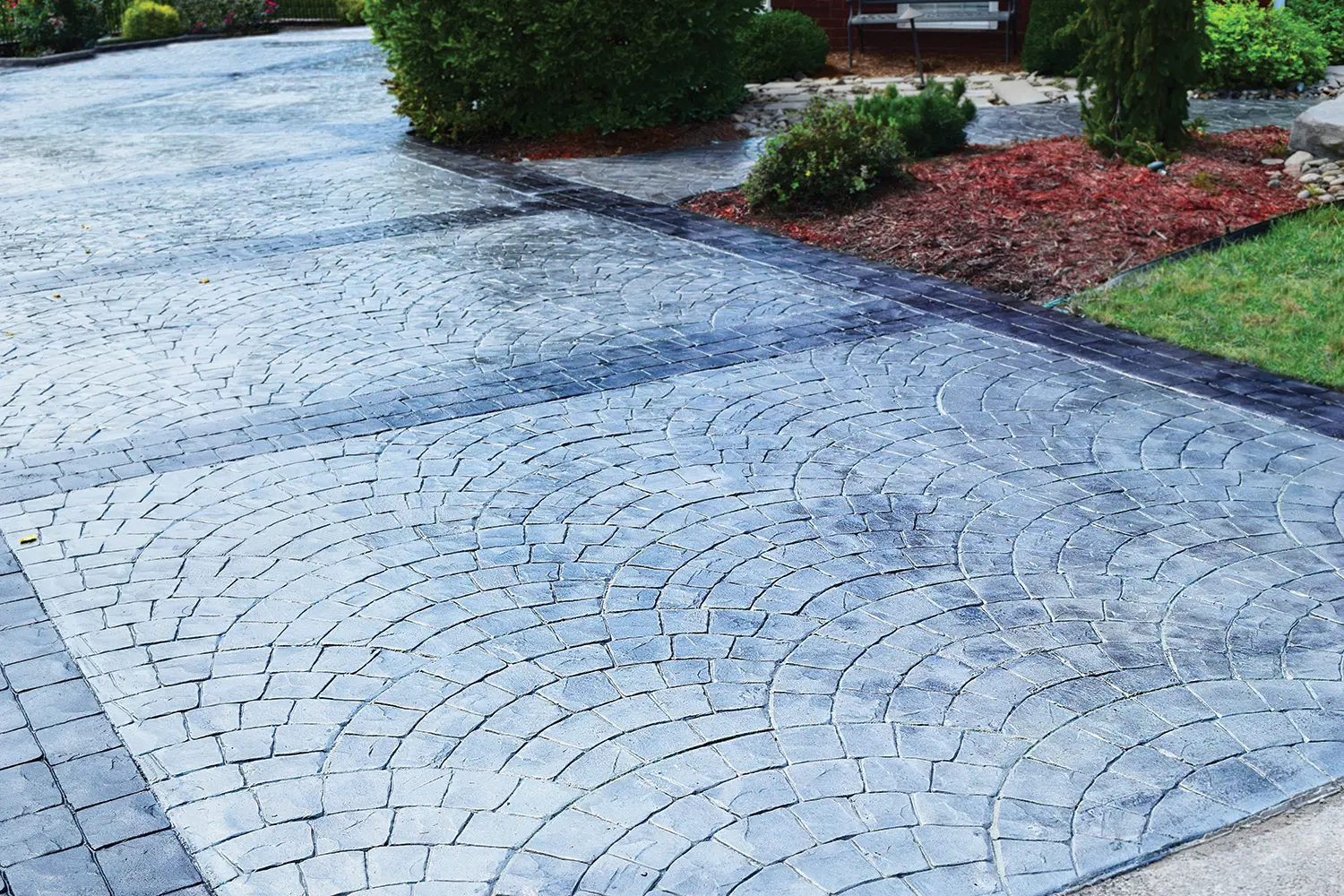

Used for walkways, patios, driveways, and other high traffic areas, The Stampable Overlay System offers an extremely elevated look to your new or existing concrete surface. Natural stone veins and chamfered grout lines promote anti-skid, drainage, and variance in shade when applying Multi-Stain.
FEATURES
- Fiber Reinforced
- Flexible
- Super Bonding
- Easy to Apply
RESISTANT TO
- FIRE / SALT
- FREEZE / THAW
- UV
- IMPACT / ABBRASION
SUITABLE SUBSTRATE
Concrete
| COMPONENTS | COVERAGE |
| VAPOR SHIELD | Per Gallon: 75 – 150 ft 2 |
| SCRATCH KOTE | Per Bag: 175 ft 2 |
| STAMP MIX | Per Bag: 30 – 35 ft 2 |
| MULTI-STAIN | Per Gallon: 175 – 200 ft 2 |
| CLEAR20 | Per Gallon: 150-200 ft 2 |

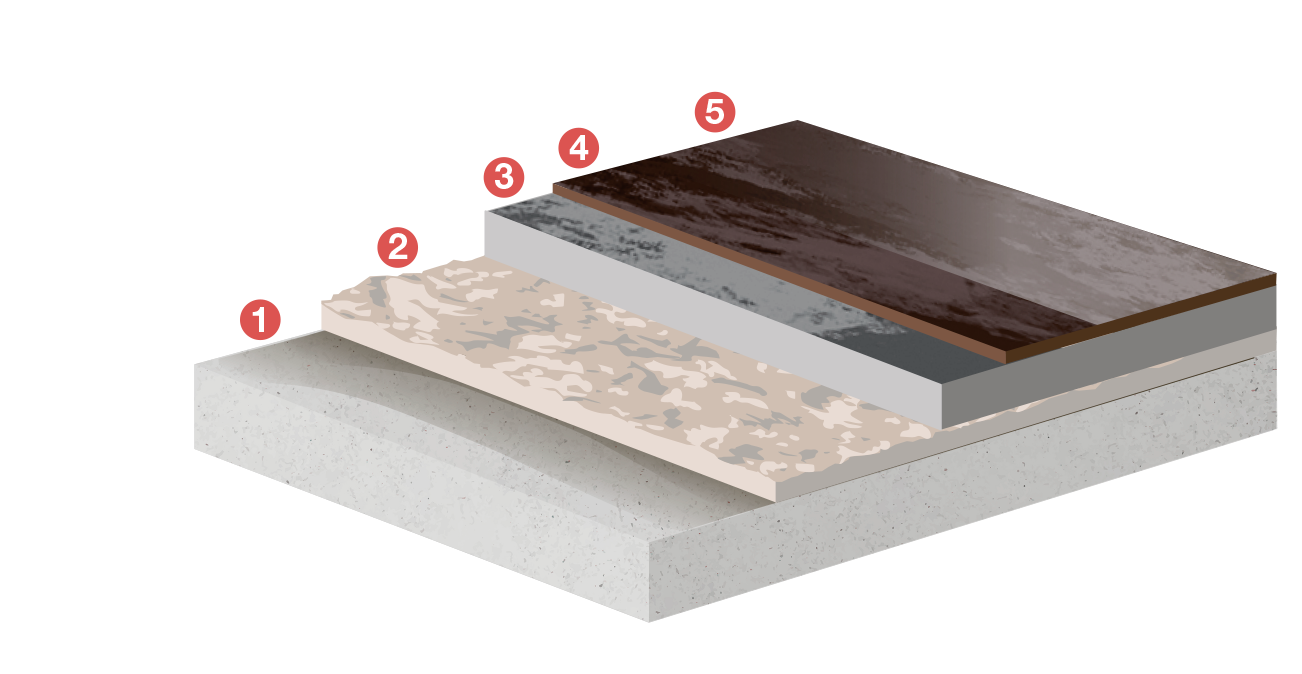

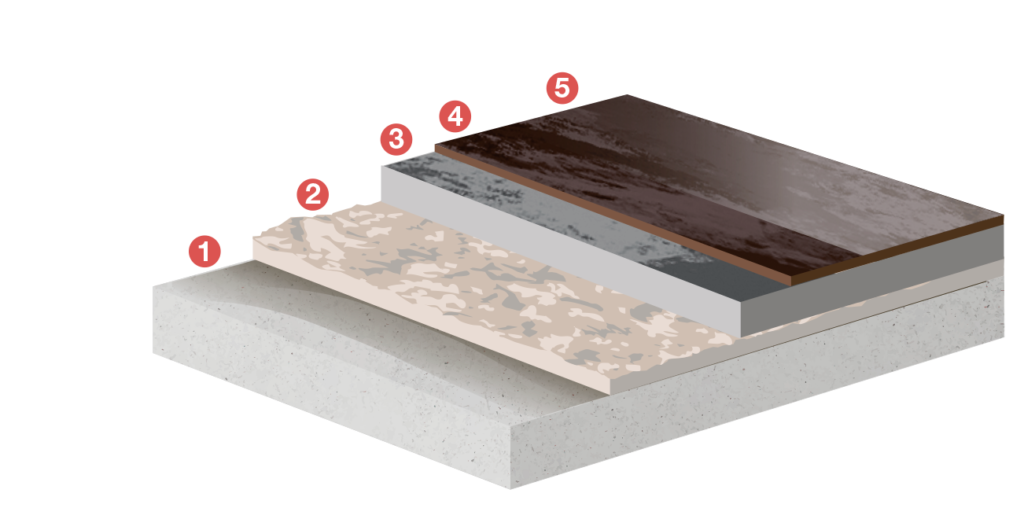

- STEP
- PRODUCT INFO
- INSTRUCTIONS
- 1
VAPOR SHIELD
vapor barrier150 sqft/gallon
- 2

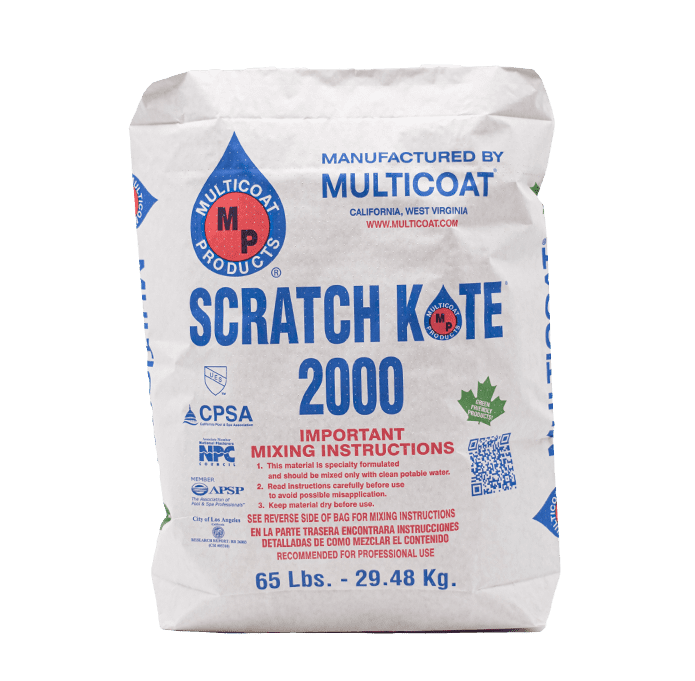

SCRATCH KOTE 2000
bond coat175 sqft/bag
- 3

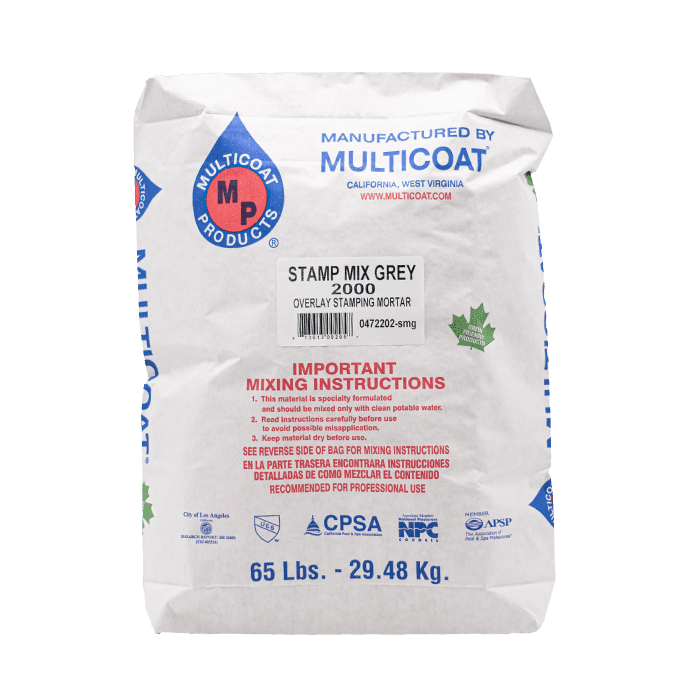

STAMP MIX
overlay cement30 sqft/bag
- 4
MULTI-STAIN
stain185 sqft/gallon
- 5

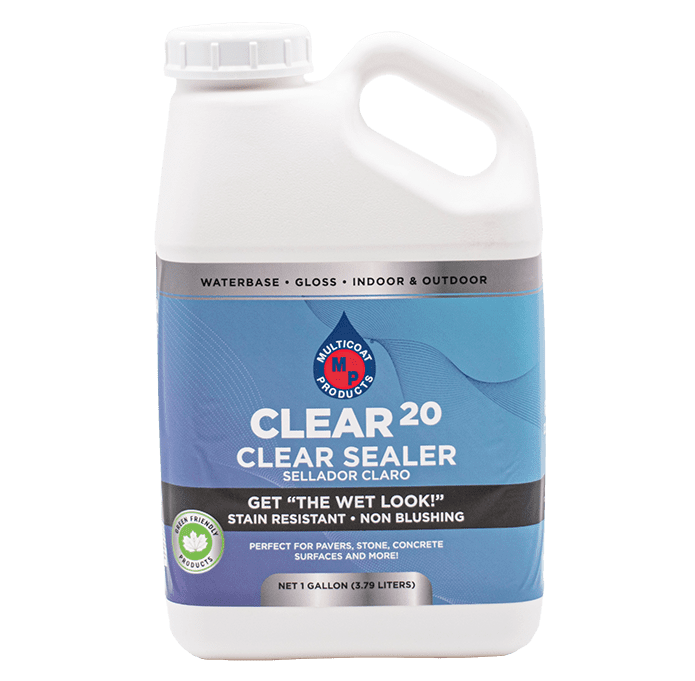

CLEAR20
clear sealer175 sqft/gallon
*OPTIONAL - Apply Vapor Shield to the substrate to reduce the green window of concrete, prevent efflorescence, and/or resist hydrostatic pressure coming through the substrate. Apply with a pump sprayer in conjunction with water, back to back. Repeat for a total of 2 coats. Allow 24 hours to dry prior to application of Scratch Kote
Learn more about VAPOR SHIELDApply Scratch Kote 2000 with a hopper gun, pressure sprayer or a ¾”-1¼” nap roller. Applied material should peak, not slump.

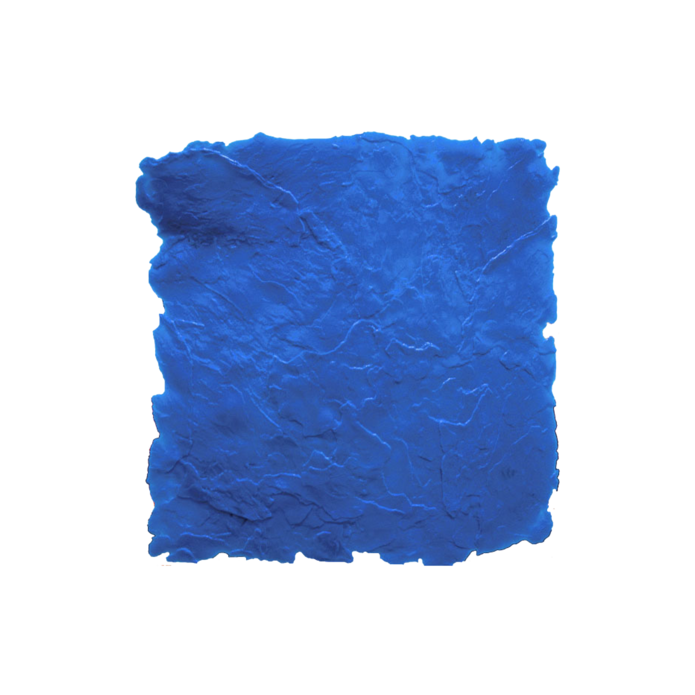

Learn more about SCRATCH KOTE 2000Use a gauge rake to pull the material across the Scratch Kote to achieve the desired thickness for the coming stamping process. once at the right firmness level, spray with stamp release and firmly press a stamp onto the surface to create texture.
Learn more about STAMP MIXWith a sprayer, saturate the surface of the cured Stamp Mix with 1 or more colors of stain. Allow it to sit longer for deeper color, and broom around to achieve different saturation points.
Learn more about MULTI-STAINUse a roller or sprayer to apply a coat of Clear20 to achieve a semi gloss finish
Learn more about CLEAR20CUSTOMIZE THIS SYSTEM
TO FIT YOUR NEEDS
Click “Show More” to view all of the testing points and their properties.
Compressive Strength
Flexural Strength
ASTM C-494 (shrinkage)
Click the desired PDF below to download.
MULTI-STAIN COLOR CHART
For Safety Data Sheets, visit our “Resources” page.
Click “Show more” to view all the answers
Q: Can I build Stamp Mix up more than 1/4″?
A: Yes, and in fact, some stamps require more. To find that information, look at the requirements for thickness when purchasing stamps.
Q: Can I mix stain colors?
A: Yes, layering colors while wet creates a natural shading effect. GO FOR IT!
Q: Can I use a solvent sealer instead of Clear20?
A: Absolutely. Seal Brite is a great option for that if you’re trying to achieve better hot tire performance or just looking for a greater gloss.
Q: Can I bridge expansion joints?
A: No, all joints must be honored with any overlay system.
